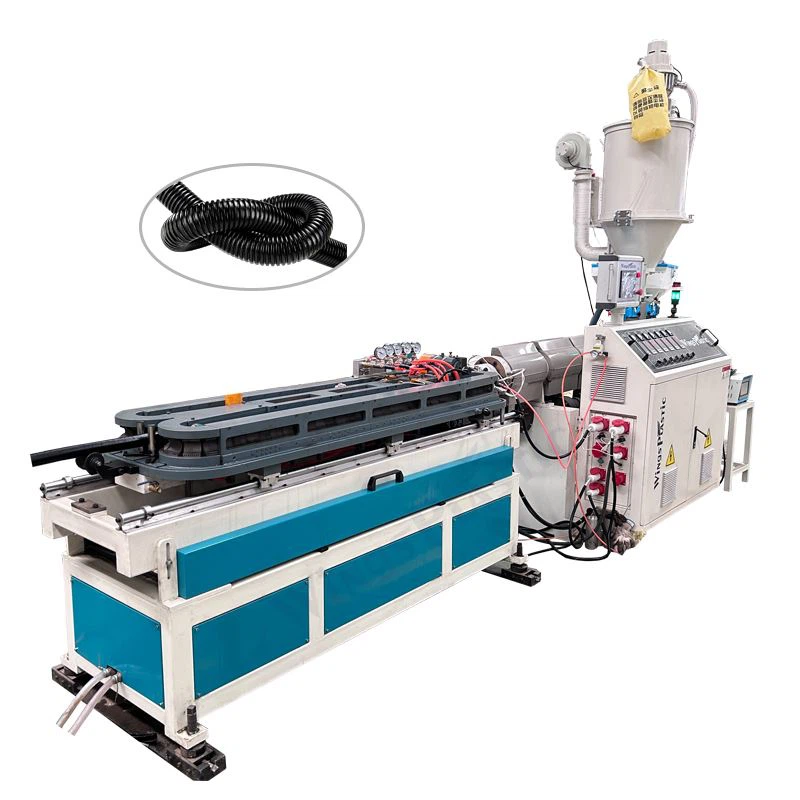

10-50mm Single Wall Corrugated Pipe Extrusion Machine PVC PE Plastic Pipe Extrusion Line
Description
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized | ||
|---|---|---|---|---|---|
| Capacity: | 40-80kg/h Or Customized | Pipe Diameters: | 10-50mm Or Customized | ||
| Suitable Materials: | HDPE LDPE EVA PVC PA | ||||
| Highlight: |
50mm Single Wall Corrugated Pipe Extrusion Machine,Single Wall Corrugated Pipe Extrusion Machine LDPE,LDPE Plastic Pipe Extrusion Line |
||||
Plastic single wall corrugated pipe extruder machine production line
Our company can be continuous make PE, PP, EVA, PVC corrugated pipe.The equipment high temperature resistance, corrosion resistance, wear resistance, high strength.Used for electrical threading pipe, auto threading pipe, casing, machine tool products, food packaging machinery, electric locomotives, engineering installation, lamps and lanterns, automation instrumentation and other fields, the market demand.
Single wall corrugated pipe applications: cable protection , TV , telephone , glass fiber , electricity , control and computer cables , machines and airplanes , medical applications , washing machines , dishwashers
Our machine use the new gear driven technology, water and air cooling system, high extrusion speed and better surface treatment.
| Extruder | SJ 30/25 | SJ 45/33 | SJ 65/30 | SJ 65/33 |
| Main motor power | 5.5kw | 11-18.5kw | 30-45kw | 55kw |
| Molding | 52pairs | 45-72pairs | 50-72pairs | 55pairs |
| Pipe diameter | 4-17mm | 10-35mm | 40-110mm | 72-200mm |
| Speed | 5-15m/min | 15-20m/min | 10-20m/min | 3-15m/min |
| Output | 15kg/h | 60-100kg/h | 100-150kg/h | 100-180kg/h |
This production line consist three parts
Extruder
Automatic feeding, ABB / Simens electric parts.
Corrugator
Air and cooling system, easy to change moulds, high corrugated pipe forming speed

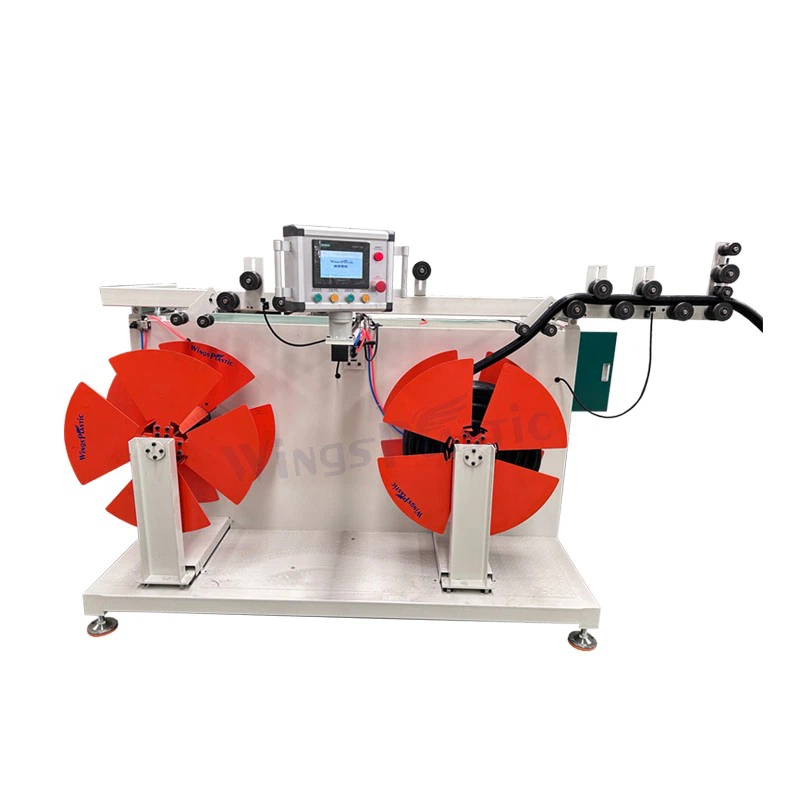

Winder
Automatic winding system.
Contact Details
QINGDAO WINGS PLASTIC TECHNOLOGY CO.,LTD
Contact Person: Mr. Wang
Tel: +86 15092066953
Fax: 532-87252290
Product Parameters of Single Wall Corrugated Pipe Machine:
|
Item |
Pipe Diameter OD |
Moulds Quantity |
Max Forming Speed |
Extruder |
|
SWC-16/52 |
7-16mm |
52 Pairs |
15m/min |
SJ45/33 |
|
SWC-52/44 |
12-52mm |
44 Pairs |
15m/min |
SJ45/33 |
|
SWC-52/70 |
12-52mm |
70 Pairs |
25m/min |
SJ50/33 |
|
SWC-75/60 |
30-75mm |
60 Pairs |
15m/min |
SJ50/33 |
|
SWC-110/60 |
50-110mm |
60 Pairs |
10m/min |
SJ50/33 |
