HDPE Corrugated Pipe Extruder Machine DWC Double Wall Corrugated Pipe Production Line
Description
| Condition: | New | Powder Condition: | 380V/50HZ Or Customized |
|---|---|---|---|
| Capacity: | 180kg/h Or Customized | Pipe Diameters: | 40-110mm Or Customized |
| Suitable Materials: | EVA LLDPE Materials | Speed: | 1-5m/min |
| Screw: | Single Screw | HS Code: | 84772090 |
| Origin: | Qingdao China | After-sales Service: | 1 Year |
| Highlight: |
HDPE Corrugated Pipe Extruder Machine,Corrugated Pipe Extruder Machine DWC,DWC Double Wall Corrugated Pipe Production Line |
||

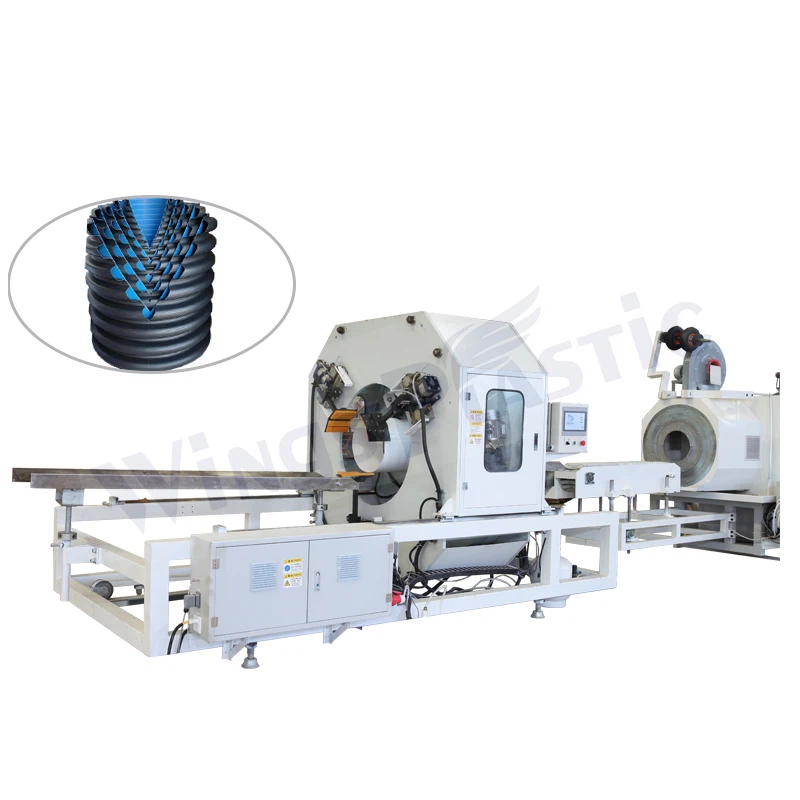

HDPE DWC Double Wall Corrugated Pipe Production Line Extruder Machine
Double-wall corrugated pipe production line adopts the direct extrusion molding process, high efficiency production , reliable quality. Due to its excellent wall structure design, the pipe have lightest weight , and the pipe cost greatly reduced, a large number alternatives of traditional concrete pipe and cast iron pipe.
Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE double-wall corrugated pipe production line, PVC double-wall corrugated pipe production line.
Equipment operation is stable, automatic production, saving labor, efficient extrusion. The finished pipe could be automatic cutted or automatic winded according customer request.
40-160mm PVC PE Double Wall Corrugated Pipe Machinery Basic Informations:
| Name | Motor | Materials | Pipe Diameter | Output | Moulds Working Length | Scre Speed |
| SJ65/50 | 30kw and 15kw | PE | 40-110mm | 120kg/h | 4000mm | 74RPM |
| SJ75/55 | 37kw and 18.5kw | PE | 75-160mm | 150kg/h | 4000mm | 74RPM |
| SJZ65/132 | 37kw | PVC | 40-110mm | 250kg/h | 4000mm | 35RPM |
Contact Details
QINGDAO WINGS PLASTIC TECHNOLOGY CO.,LTD
Contact Person: Mr. Wang
Tel: +86 15092066953
Fax: 532-87252290

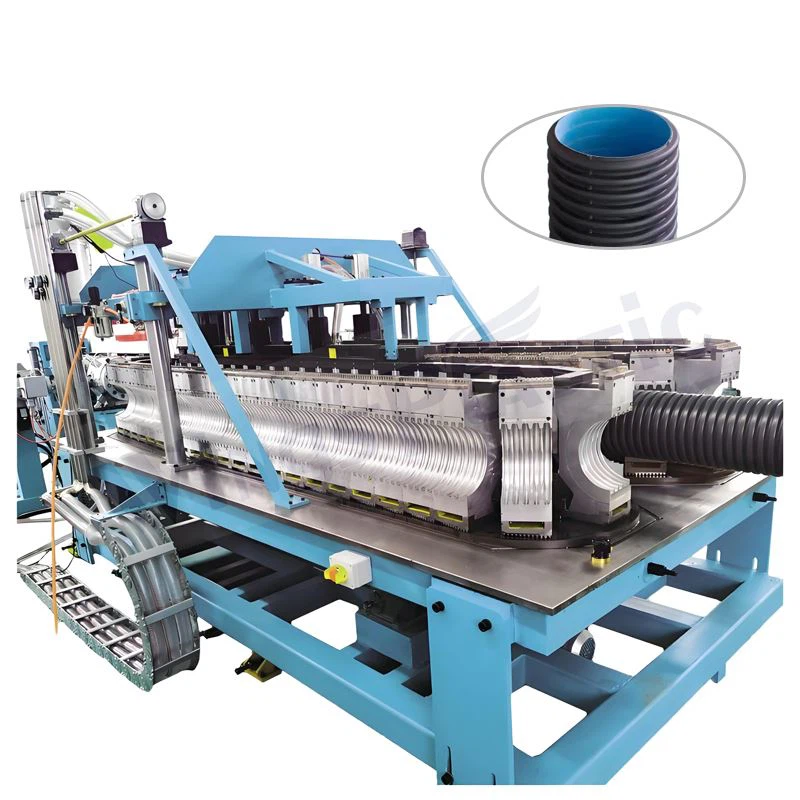

Technical Parameters of Double Wall Corrugated Pipe Machine:
|
Item |
Pipe Diameter OD |
Moulds Quantity |
Max Forming Speed |
|
DWC-110S |
40-110mm |
42 Pairs |
5m/min |
|
DWC-250S |
75-250mm |
36-48 Pairs |
5m/min |
|
DWC-180H |
40-200mm |
36 Pairs |
15m/min |
|
DWC-300H |
90-300mm |
36 Pairs |
11m/min |
|
DWC-600H |
200-600mm |
36 Pairs |
6.5m/min |
|
DWC-800H |
200-800mm |
36 Pairs |
6.5m/min |
