Plastic PE PP PVC Single Wall Corrugated Pipe Extruder Machine
Description
| Condition: | New | Screw Material: | 38CrMoAlA |
|---|---|---|---|
| Screw L/D Ratio: | 33:1 | Screw Design: | Single-screw |
| Inverter: | Delta Brand | Contactor: | Siemens Contactor |
| Output: | 200 - 250 Kg/h | Raw Material: | PP PE Pvc Hdpe |
| Core Components: | Bearing, PLC | Final Product: | High Speed Single Wall Corrugated Pipe |
| Highlight: |
PVC Corrugated Pipe Extruder,250Kg/h Corrugated Pipe Extruder,PLC Single Wall Corrugated Pipe Extruder |
||

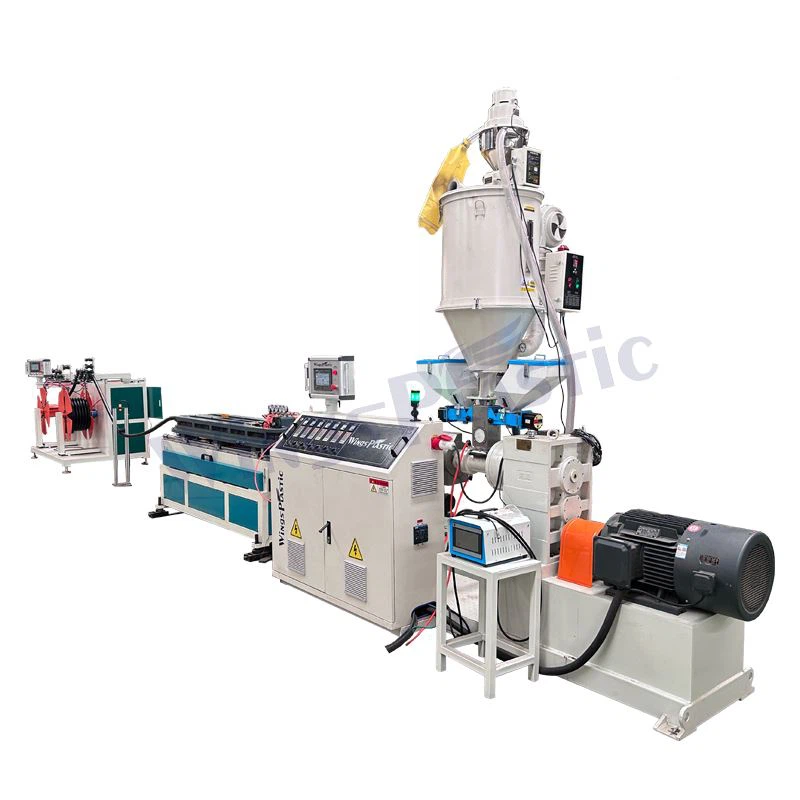

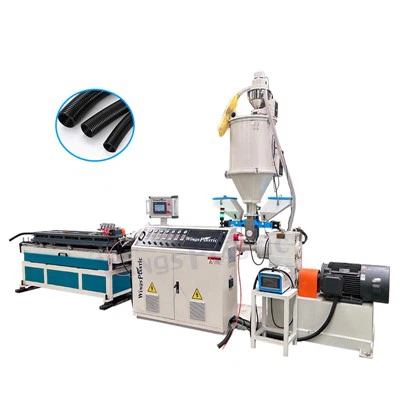

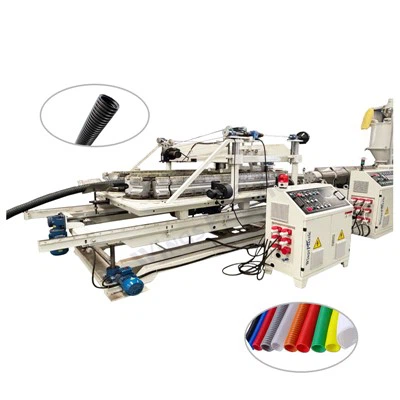

Corrugated pipe making machine
series plastic single wall corrugated pipe extrusion line can produce PP/PE/PVC/EVA/PA corrugated pipe. Mould Chain adopts gear transmission,base plate adopts water cooling, mould adopts air cooling. Corrugated pipe produced by our machine has the features of high production speed, even corrugated shape, straight pipe seam, and smooth surface.
By equipped with vacuum pump and vacuum type mould, it can produce different use corrugated pipe with joint (wash basin drain pipe, air conditioner pipe, hookah pipe etc.)
Features
1.Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.
2.Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
3.Forming modules: it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change
4.Coiler :Single position or double position with torque motor.
5.Electrical parts: ABB inverter, Schneider contactor etc.
Tag:Corrugated Pipe Extruder Machine LLDPE,Corrugated Pipe Extruder Machine,Corrugated Pipe Extruder Machine DWC
Contact Details
QINGDAO WINGS PLASTIC TECHNOLOGY CO.,LTD
Contact Person: Mr. Wang
Tel: +86 15092066953
Fax: 532-87252290
Product Parameters of Single Wall Corrugated Pipe Machine:
|
Item |
Pipe Diameter OD |
Moulds Quantity |
Max Forming Speed |
Extruder |
|
SWC-16/52 |
7-16mm |
52 Pairs |
15m/min |
SJ45/33 |
|
SWC-52/44 |
12-52mm |
44 Pairs |
15m/min |
SJ45/33 |
|
SWC-52/70 |
12-52mm |
70 Pairs |
25m/min |
SJ50/33 |
|
SWC-75/60 |
30-75mm |
60 Pairs |
15m/min |
SJ50/33 |
|
SWC-110/60 |
50-110mm |
60 Pairs |
10m/min |
SJ50/33 |
