Your Professional PMMA PC Pipe Making Machine Manufacturer & Supplier
Qingdao Wings Plastic Technology Co.,Ltd was incorporated in 2008 for the manufacture of extrusion lines for production of corrugated pipe, plastic pipe/hose, plastic mat, PET/PP strap, plastic sheet/board etc.
-

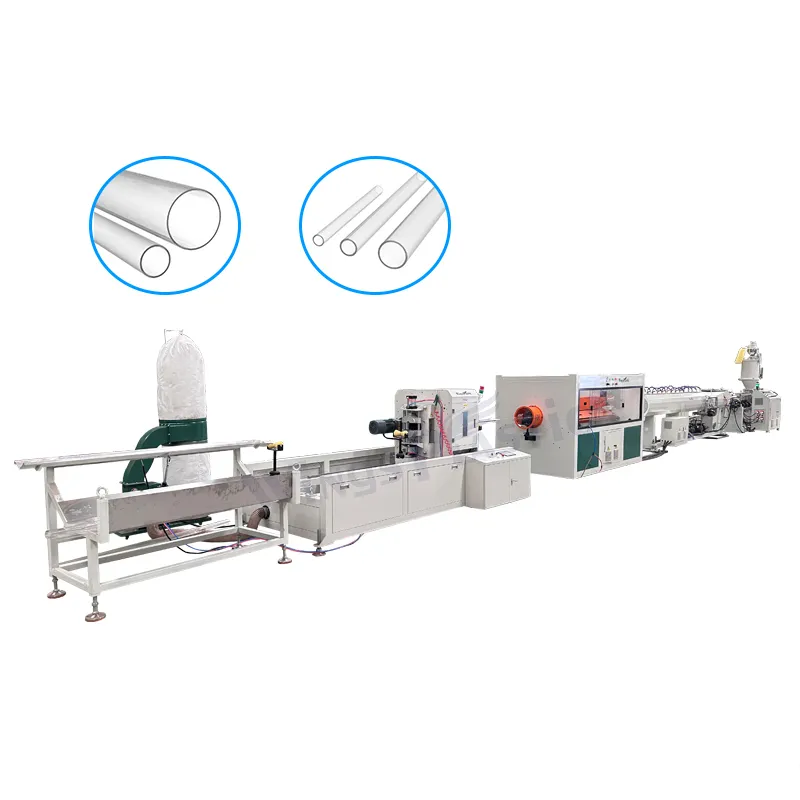

![PMMA Pipe Extrusion Machine]()
PMMA Pipe Extrusion MachineAcrylic is a convenient and transparent plastic similar to glass, but it has a characteristic that it is superior to glass in many ways. Common brands of high-end acryl include Polycast, luster and
-

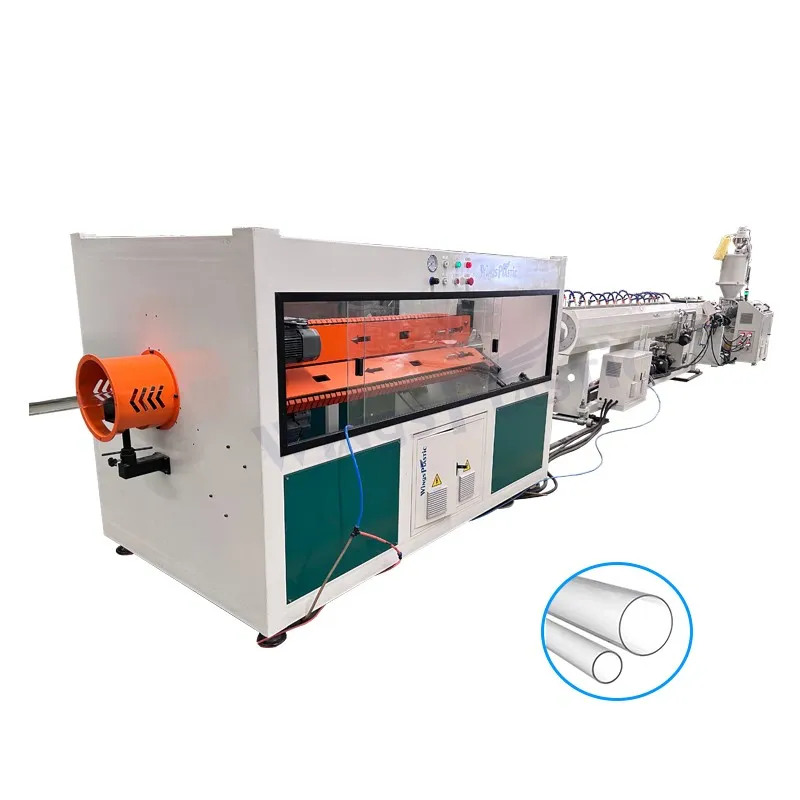

![PC Pipe Making Machine]()
PC Pipe Making MachineAcrylic is a convenient and transparent plastic similar to glass, but it has a characteristic that it is superior to glass in many ways. Common brands of high-end acryl include Polycast, luster and
Why Choose Us
Professional Certification
We have obtained ISO 9001-2008 international quality management system certification, and all our products hold EU CE certification; consequently, our operations—ranging from production standards to product compliance—meet internationally recognized benchmarks.
Sales Markets
Our products are not only highly popular within the domestic market but are also exported to over 20 countries and regions worldwide—including the United States, Germany, Canada, Russia, India, Turkey, Egypt, Brazil, South Africa, Ukraine, Namibia, and Paraguay—covering major regional markets across Europe, the Americas, Asia, and Africa.
Customization Services
We provide tailored, comprehensive solutions that extend far beyond mere equipment manufacturing. Our service scope encompasses everything from equipment commissioning and technical training to ongoing operational maintenance support, ensuring that we address our clients' practical challenges throughout the entire process and guarantee the efficient, stable operation of their equipment.
Specification
|
Item |
Specification |
|
Raw Material |
PMMA (Acrylic) |
|
Pipe Diameter |
3–50 mm (customizable) |
|
Extruder Type |
Single-screw extruder |
|
Output Capacity |
20–120 kg/h |
|
Line Speed |
0.5–10 m/min |
|
Cooling System |
Water cooling tank |
|
Calibration |
Vacuum calibration tank |
|
Haul-off |
Belt type / Caterpillar type |
|
Cutting |
Automatic cutting machine |
|
Control System |
PLC control system |
|
Power Supply |
380V 50Hz (customizable) |
|
Application |
Lighting tubes, decorative pipes, diffusion pipes |
Salient Features of PMMA PC Pipe Making Machine
Widely used for the production of PMMA pipes, for signage, displays, architectural panels, automotive components, and sanitary ware.
Able to virgin acrylic, recycled acrylic, and specialty PMMA grades for superior sheet quality.
Specially design screw and barrel for precise processing of PMMA.
With PLC & HMI touchscreen control for accurate tuning of machine operation.
Equipped with advanced temperature-controlled heating zones ensure uniform heating of material.
With variable AC frequency drive for optimum performance.
Aesthetically and ergonomically build machine for best performance.
Produced in an advanced state of the art manufacturing facility.
Latest technology for better performance and improved efficiency.
Designed to work 24 hours, round the clock.
Operator friendly machine, hence easy to operate and maintain.
Low maintenance and operating cost.
Sturdy design to ensure long life and trouble-free operation.
Main Extruder: Single screw extruder takes the new and efficient 38CrMoAlA Screw,and has the higher screw speed, yield and plasticizing capacity...nose or spiral-flow nose,with a uniform material,convenient adjustment to eliminate extrusion fusion line and so on.
Cooling and Shaping Tank: Vacuum spray tank,spray cooling tank or efficient cooling tank, and all water contact parts made of stainless steel material.
Traction
Two claw-type or rubber belt crawler tractor in order to adapt to different pipe production requirements.
Cutting Machine
No dust rotating knife.
Stacker
Automatic turn plate or roller-type stacking devices, small-diameter pipe can be configured duplex winder according to customer requirements duplex winder.
The Extrusion Process of PMMA PC Pipe Making Machine
Raw Material Feeding
The process begins with the feeding of the raw material into the hopper, which ensures an uninterrupted supply of pre-mixed plastic to the extrusion machine.
Melting and Plasticizing
While moving through different heated zones inside the PMMA PC pipe making machine, the raw material is heated and melted progressively. In addition, the screw, rotating inside the PMMA PC pipe making machine, plays the critical role in mixing and plasticizing the materials.
Shaping the Molten Plastic
The molten plastic passes out of the die to attain the desired shape of the pipe. Proper designing of the die is a prerequisite to achieving the desired product, which should meet all the specifications of the final product with great precision and uniformity.
Cooling and Solidification
The molten plastic pipe, upon coming out of the die, is then moved through a cooling unit. At this point, the water-bath cooling system or the spray chambers are employed to facilitate and expedite the cooling and solidification of the pipe into a solid state without damaging its custom structure.
Pulling and Sizing
A cooling chain transports pulled pipes for reliable forward movement. Size tools are used to ensure dimensions and surface smoothness.
Cutting-off
After reaching the required size, the pipes are cut-off by the computerized cutters to maintain uniformity.
Quality Inspection and Tests
When testing procedures are completed, the pipes are micrometer checked for diameter, strength etc. to warrant that the required pipe quality is entering the market.
Industry Scenarios of PMMA PC Pipe Making Machine
Medical Field
In the medical field, PMMA PC pipe making machines are used for various purposes, including making medical pipes, such as
• Oxygen pipes
• Oxygen pipes for patients
• Intravenous (IV) flow pipes
• Blood transfusion pipes
• Medical equipment
• Connectors & Hubs
• Medical devices, connectors, and hubs.
Automotive Industry
PMMA PC pipe making machines are used in the automotive industry to produce pipes and tubing for various automotive applications.
Such as:
• Fluid transfer
• Automobile Pipes
• Aesthetics
• Car Lighting
• Protective Sleeving
Aerospace Industry
PMMA PC pipe making machines have diverse applications in the aerospace industry. These machines are employed to manufacture pipes and tubing for various aerospace components and systems.
• Fluid Transfer Systems
• Structural Components
• Instrumentation
Construction Industry
PMMA PC pipe making machines have applications in the construction industry. These machines are used to produce pipes and tubing for various construction-related purposes.
• Infrastructure
• Drainage Systems
• HVAC Systems
• Prototyping
Customization Services
To meet different PMMA and PC pipe production requirements, we provide customized PMMA PC pipe making machine solutions based on pipe diameter, wall thickness, material properties, output capacity, voltage standards, and automation levels. For more information or technical support, please feel free to contact us.
Packaging and Shipping
|
Packaging |
Wooden box, PE film. |
|
Transportation methods |
Sea freight, land transportation, or multimodal transportation based on customer requirements. |
Our Certificate
FAQ
As one of the most experienced pmma pc pipe making machine manufacturers and suppliers in China, we also support customized service. Please feel free to buy durable pmma pc pipe making machine made in China here from our factory. For price consultation, contact us.
