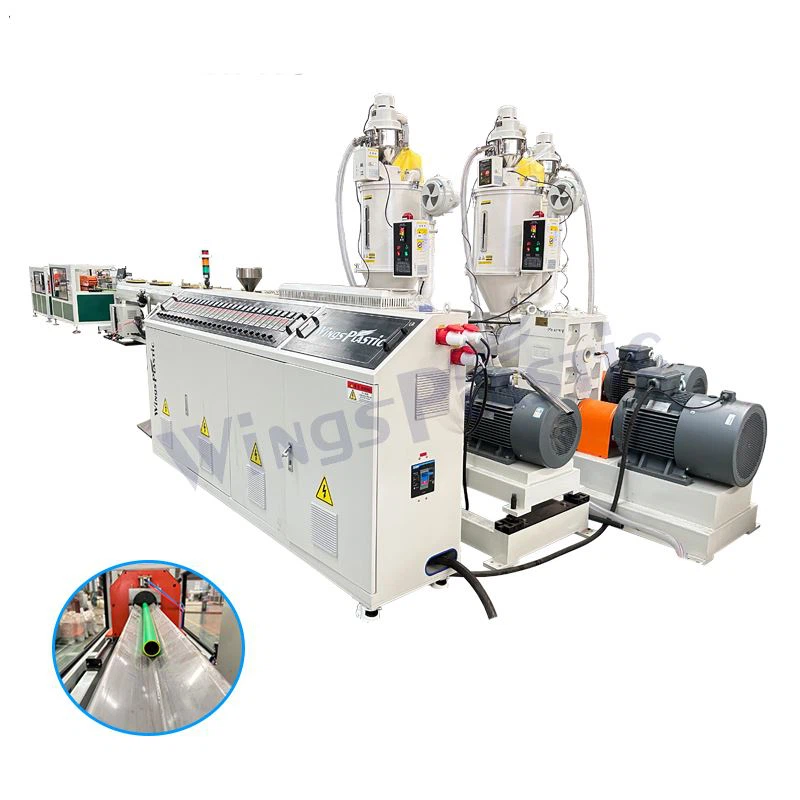

PPR Pipe Production Making Machine

Description

PE Pipe Production line

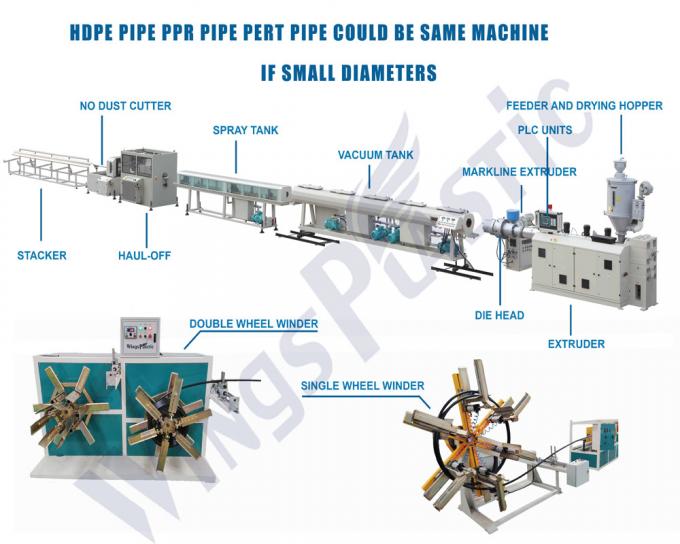

PE series plastic pipe production line is mainly used for producing pipe of waster supply and drainage in the field of agriculture and construction cable etc. This machine consists of vacuum calibration tank, haul off unit, cutting unit, stacker etc. The single screw extruder and haul off unit apply famous A/C frequency conversion speed regulation device,both vacum pump and driving motor apply famous brand The haul-off unit includes two-claw type,three-claw type,four-claw type,six-claw type,eight-claw type, ten-claw type, twelve-claw type etc.Dust fre cutting machine saw blade cutting machine or planetary cutting machine can be applied,the property of machine group is reliable.The production efficiency is high with special device,it can produce inner wall spiral pipe inner wall hollow pipe ,and core layer foam pipe.It can also produce PP,PE,ABS,PPR,PEX,Silicon core pipe etc.The planetary cutting machine is controlled automatically with computer, it has such advantages of simple operation, reliable performance etc.It has reached international advanced level.

Characteristics:
1.Capacity: single screw extruder, suitable to process PE resin with high capacity, max 1000kg/h
2.Diameter: from 16 to 800mm
3.Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE PP PPR low temperature extrusion production.
4.Specially-designed spiral moulds for PE PP PPR pipes with marking line, with inside oil controlling temperature system
5.Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes with marking line; special spray cooling system improves the cooling efficiency ; special water position, water temperature system make the machine more intelligent.
6.Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.
7.Cutting system adopts saw blades and planetary cutting means; sumping uses hydraulic system, which ensures the smooth cross section; equipped with dust-collecting unit, which ensures the clean working environment.

Tag: LLDPE Plastic Pipe Production Line, PLC PPR Plastic Pipe Production Line, LDPE LLDPE PPR Pipe Production Line

QINGDAO WINGS PLASTIC TECHNOLOGY CO.,LTD

Contact Person: Mr. Wang

Tel: +86 15092066953

Fax: 532-87252290

Technical Parameters:
